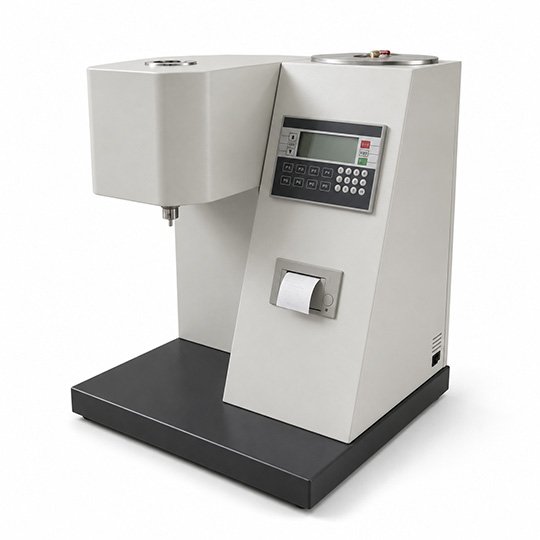

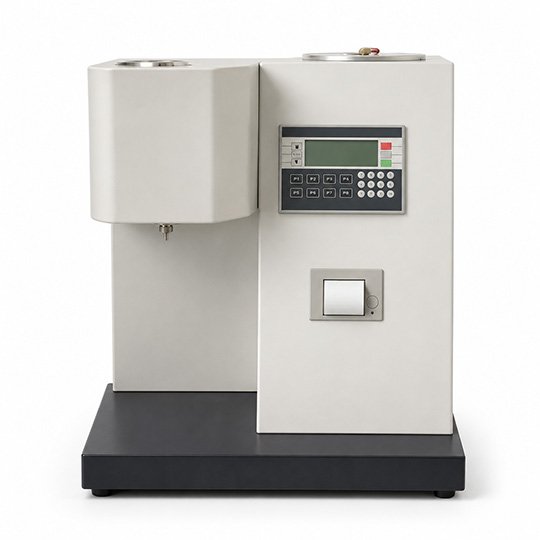

Melt Flow Index Tester For Plastic QC
Reliable MFR data helps you decide whether a plastic batch is suitable for processing.

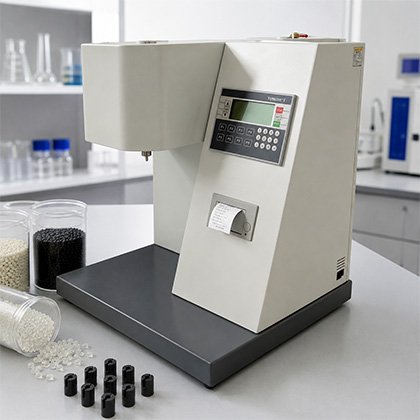

The automatic cutting device and settable cutting interval reduce manual timing errors.
Temperature and time can be monitored directly on the LCD, without relying on scattered manual checks.
Direct result printing makes routine quality records easier to keep.
The GB/T 3682-2000 compliant structure supports standardized melt flow rate testing.
Stable and repeatable temperature control makes material flow behavior easier to compare.

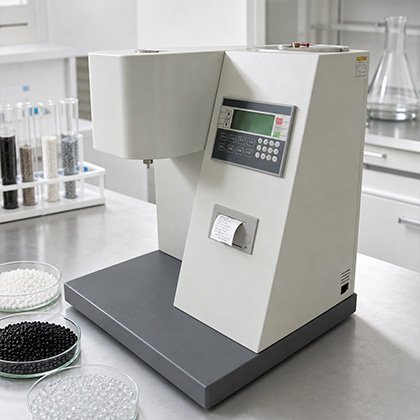

Accurate Melt Flow Index Tester For Better Material Processing
When buying or producing thermoplastic materials, melt flow behavior affects processing stability, product appearance, molding consistency, and batch acceptance. Unstable MFR results can make it difficult to judge whether a material is too fluid, too viscous, or inconsistent between batches.
A Melt Flow Index Tester helps control temperature, cutting time, data processing, and result printing in one workflow, turning melt index testing into a more repeatable quality-control step instead of a manual judgment.
Melt Flow Index Tester For Thermoplastic MFR Testing
A PLC-controlled melt index tester for measuring MFR or MI values of thermoplastic plastics.
A practical testing solution with settable cutting time, manual cutting option, LCD display, and micro printer output.

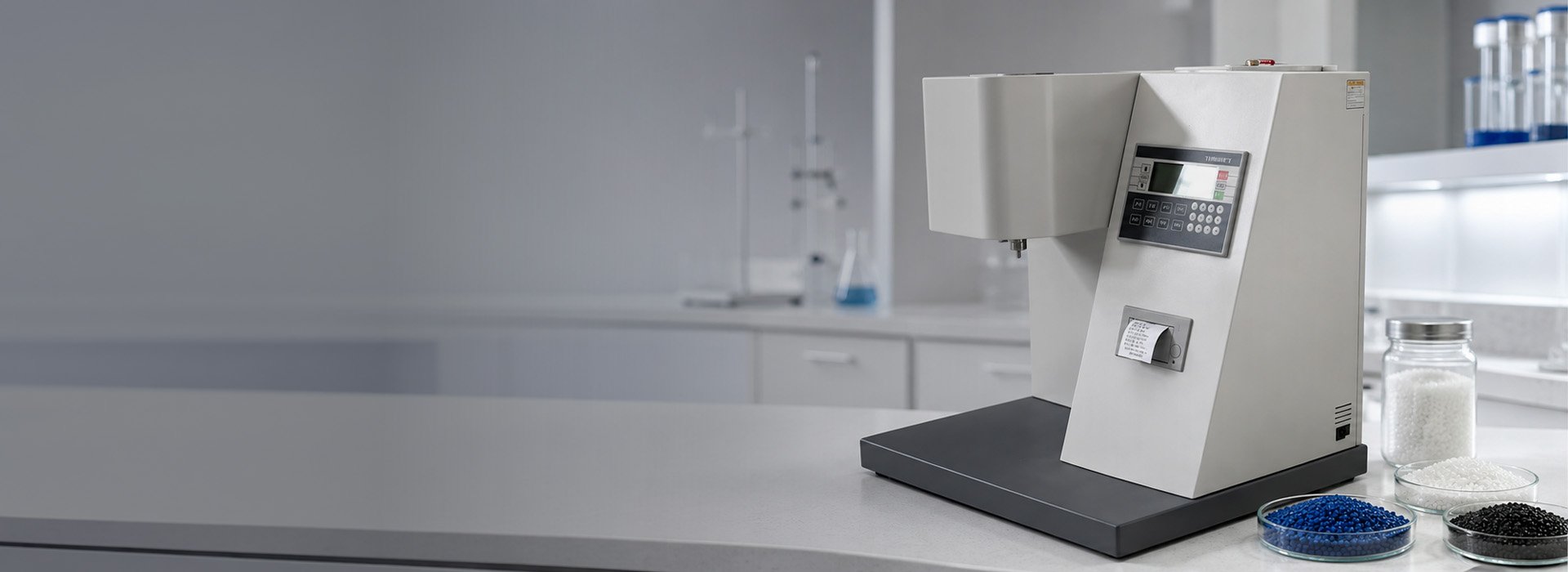

Melt Flow Index Tester For Material Inspection And QC
Your testing work may involve incoming inspection, production QC, resin comparison, or laboratory reporting. This melt flow tester helps turn material flow behavior into usable data before production problems appear.
Check whether purchased thermoplastic raw material meets the expected flow behavior before it enters production.
Compare MFR data between batches and identify materials that may cause unstable processing.
Use melt flow data to judge whether a material is suitable for your processing conditions.
Compare different resin grades, modified plastics, or supplier samples under the same test conditions.

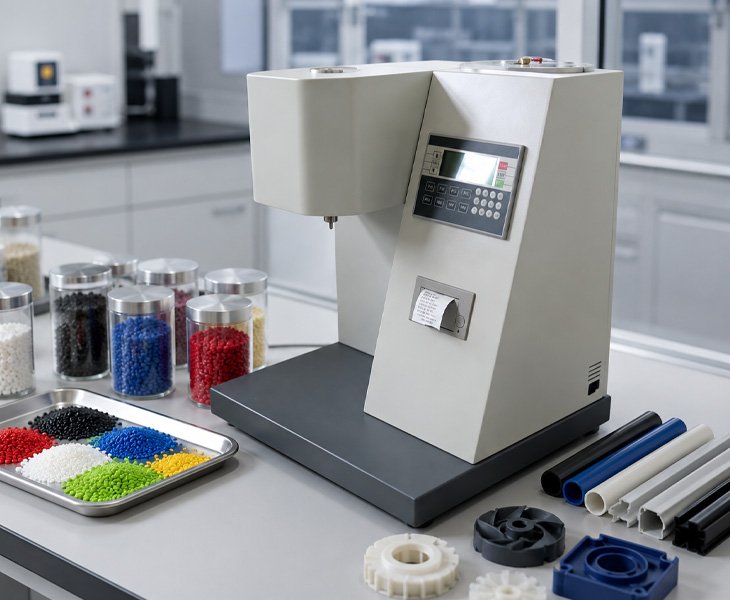

Ensure Material Consistency With A Melt Flow Index Tester
A material may look acceptable on paper but still behave differently during molding or extrusion. If the melt flow rate is outside your expected range, you may face unstable filling, inconsistent extrusion, surface defects, or processing adjustments that cost time. With controlled temperature, standard die dimensions, accurate timing, and printable results, this tester helps you screen materials before they create problems on the production line.
Why Choose FOLISTECH?
When you choose FOLISTECH, you are not only buying a melt flow rate tester. You can confirm your material type, test standard, cutting workflow, balance requirement, die configuration, and reporting needs before ordering. This helps your team avoid buying an instrument that looks similar but does not match the way you actually test thermoplastic materials.
Application For Your Melt Flow Testing Workflow
If you purchase resin or modified plastic from different suppliers, you need a quick way to check whether the melt flow behavior is consistent. This tester helps you identify batch differences before material enters production.
If your production process is sensitive to viscosity changes, MFR data can help your team understand why a material processes differently. You can use the tester to support daily QC decisions and reduce trial-and-error adjustments.
When you compare multiple resin grades or formulation changes, you need the same temperature, load, die, and cutting workflow. The XNR-450D gives your lab a repeatable method for comparing melt flow data.
Product Details Tab
- Applicable Standard
- Technical Specifications
- Extrusion Discharge Part
- Main Configuration
| Standard | Description |
| GB/T 3682-2000 | Test method requirement for melt flow rate determination |
| Item | Specification |
| Temperature Control Range | Room temperature to 450℃ |
| Temperature Accuracy | Within ±0.1℃ |
| Temperature Fluctuation | ±0.5℃ |
| Resolution | 0.1 s |
| Measuring Range | 0.1 to 100 g/10 min (MFR) |
| Measurement Accuracy | ±1% |
| Heating Power | 750 W |
| Power Supply | Single-phase three-wire 220V±10%, 50Hz |
| Item | Specification |
| Discharge Outlet Inner Diameter | φ2.095±0.005 mm |
| Outlet Length | 8.000±0.025 mm |
| Charging Barrel Inner Diameter | φ9.550±0.025 mm |
| Charging Barrel Length | 160 mm |
| Piston Rod Head Diameter | φ9.475±0.015 mm |
| Piston Rod Head Length | 6.350±0.1 mm |
| Item | Quantity / Description |
| Main machine | 1 set |
| PLC integrated machine | 1 set |
| Micro printer | 1 unit |
| Die | 1 piece; tungsten carbide material, inner diameter φ2.095 mm±0.005 mm, surface roughness below 0.2 μm, die height 8.000 mm±0.025 mm |
| Die drill | 1 piece |
| Power cord | 1 piece |
| Load rod | 1 set, 325 g |
| Funnel | 1 piece |
| Cleaning rod | 1 piece |
| Die removal rod | 1 piece |
| Level | 1 piece |
| Tray | 1 piece |
| Leveling feet | 4 pieces |
| Precision weights | 1 set |
Customer Feedback On The Melt Flow Index Tester
Melt Flow Index Tester for Routine QC
“With automatic cutting and printed results, our QC team can make melt index testing easier to repeat and easier to document during routine material inspection.”
Ahmed Al-SalehQC Laboratory Manager, UAE – Plastic Manufacturing LabReliable Melt Flow Index Testing for Material Evaluation
“Stable temperature control helps our laboratory compare materials under controlled conditions, so our team can make clearer decisions before production starts.”
Nguyen Thi LanMaterials Testing Engineer, Vietnam – Polymer Research Lab
Determines the melt flow rate of thermoplastic plastics, helping QC teams check material consistency before production.
MFR (or MI) is the mass of molten plastic flowing through a standard die in 10 minutes under controlled conditions.
Complies with GB/T 3682-2000 for standardized MFR testing.
From room temperature to 450 °C, suitable for different thermoplastic materials.
0.1–100 g/10 min, covering most thermoplastic MFR analysis needs.
Yes, automatic or manual cutting reduces timing errors.
Yes, results can be processed and printed via the built-in micro printer.
Optional; if required, the price is calculated separately.
